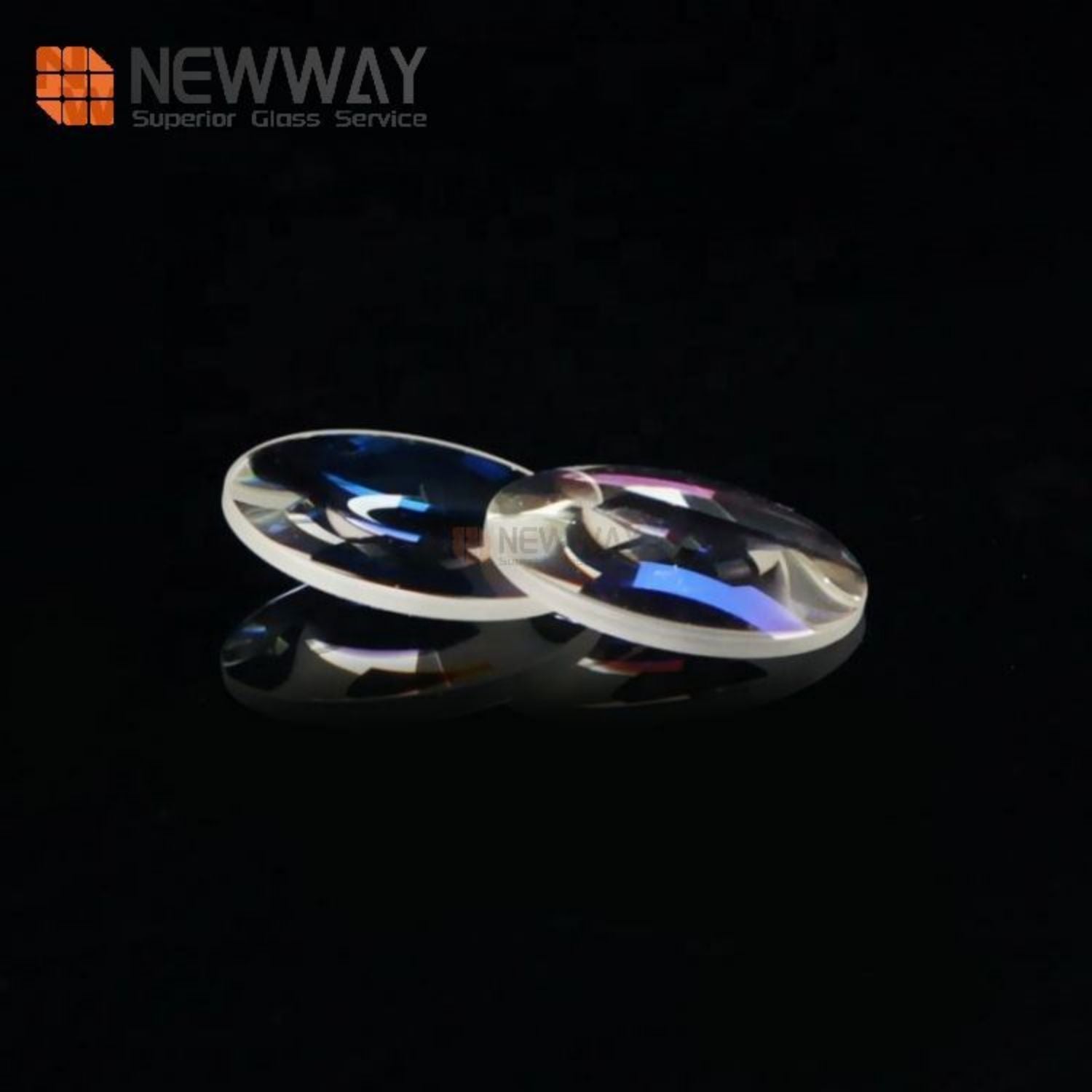

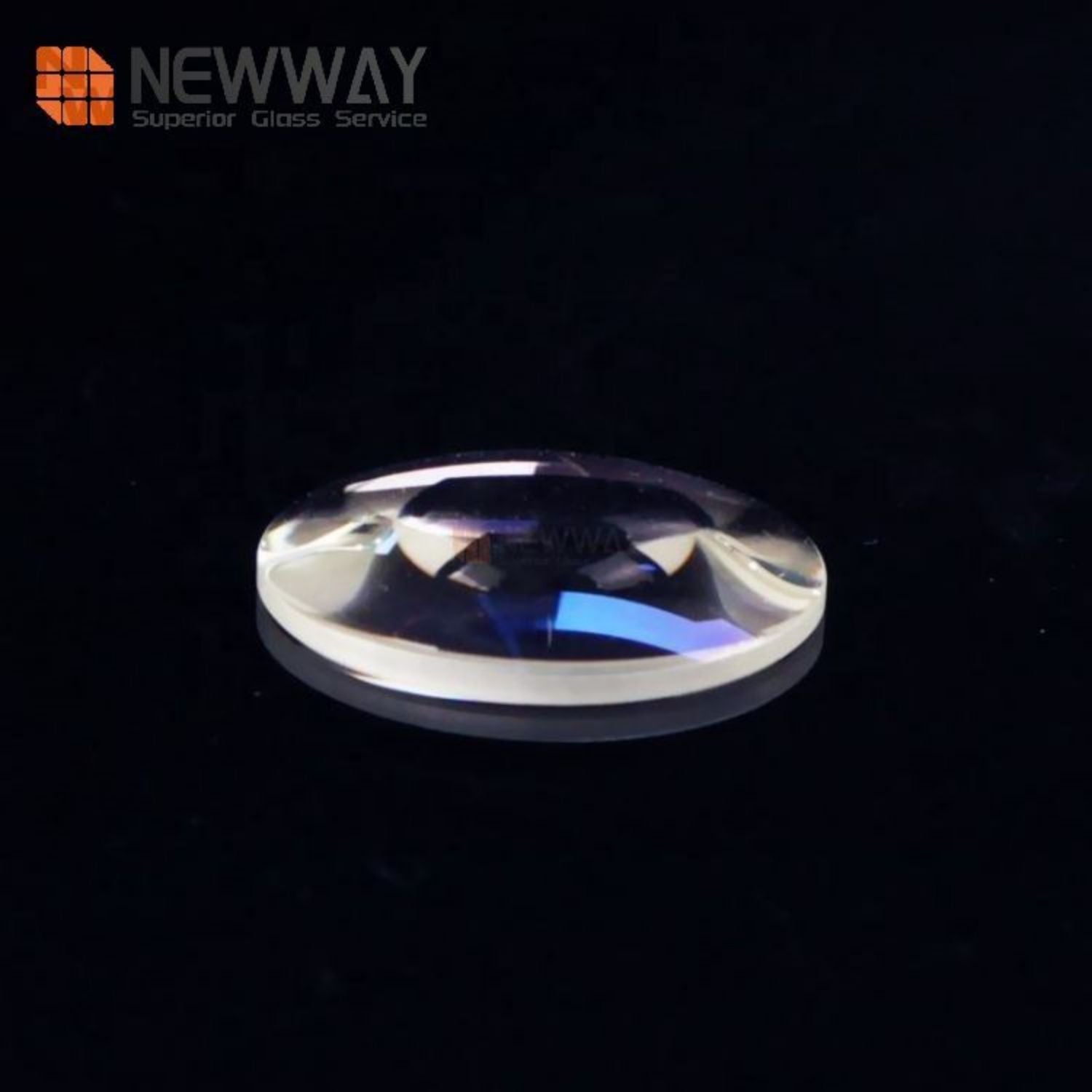

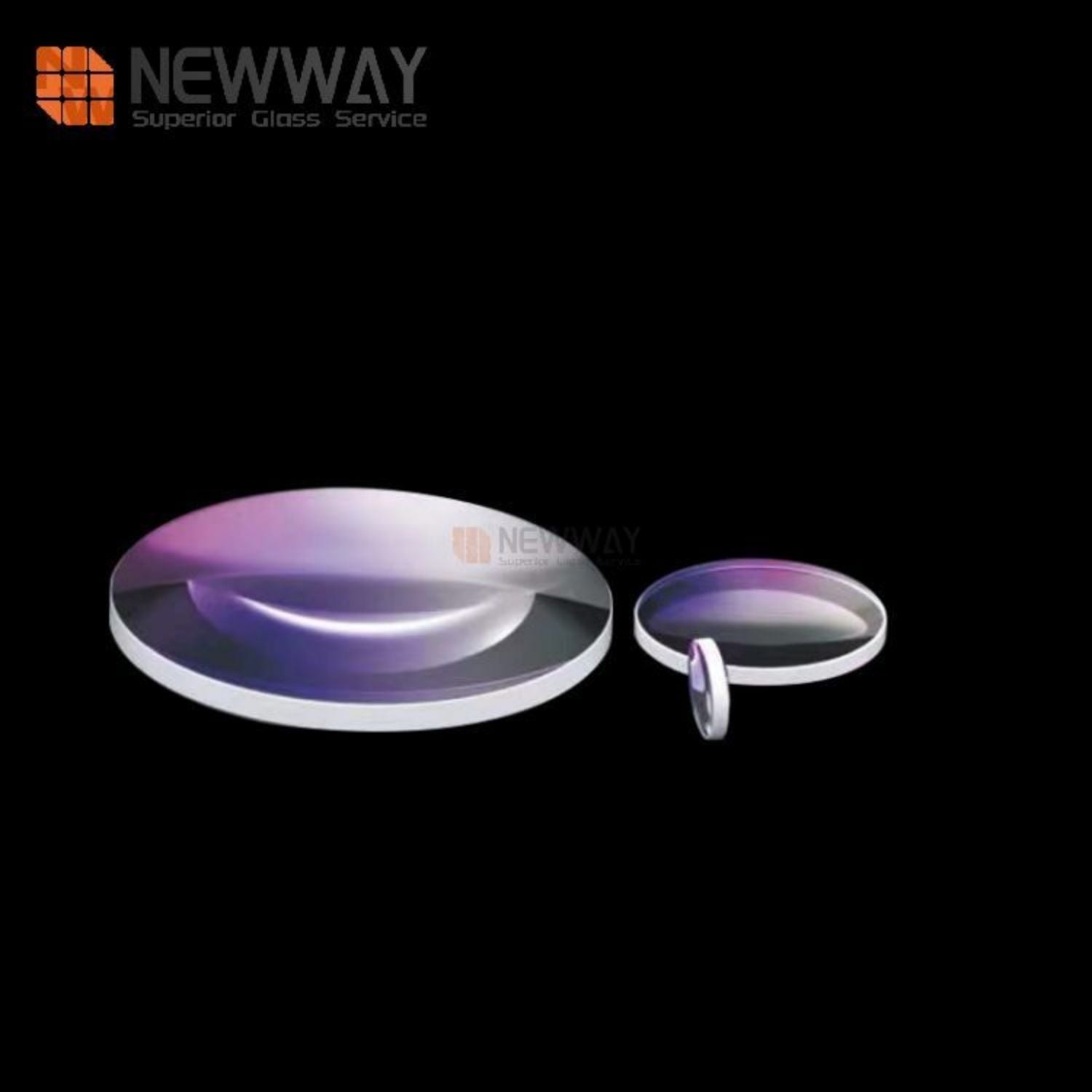

Optical Fused Quartz Glass Infrared Biconvex Lens with AR Coating

- Quartz Glass Material: Constructed from high-purity fused quartz glass silica (JGS1), this lens exhibits excellent optical properties, including high transmission in the infrared range and exceptional thermal stability.

- Infrared Biconvex Lens: Designed with a biconvex shape optimized for focusing infrared light, this lens ensures precise control and manipulation of infrared radiation for various applications, including spectroscopy, thermal imaging, and laser systems.

- Anti-Reflective (AR) Coating: Equipped with an advanced anti-reflective coating, this lens minimizes reflections and glare, enhancing optical transmission and improving image clarity and contrast in infrared imaging systems.



Manufacturing Process:

- Laser Cutting: Advanced laser cutting technology is employed to shape the fused quartz glass material into the desired biconvex lens geometry, ensuring precise dimensions and surface quality.

- Smooth Edge: Following laser cutting, the edges of the lens are meticulously smoothed to achieve a polished finish, enhancing both safety and optical performance during handling and integration into optical systems.

- Chemical Strengthening: The lens undergoes a specialized chemical strengthening process, enhancing its mechanical durability and resistance to thermal shock, ensuring reliable performance in demanding infrared applications.



Applications:

1. Infrared Spectroscopy: Ideal for use in infrared spectroscopy instruments for analyzing chemical composition, molecular structure, and other properties of materials in research, pharmaceutical, and industrial laboratories.

2. Thermal Imaging: Suitable for thermal imaging systems used in security surveillance, industrial inspection, and medical diagnostics, where precise focusing of infrared radiation is essential for detecting temperature variations and thermal anomalies.

3. Laser Systems: Compatible with infrared laser systems for applications such as laser material processing, medical surgery, and telecommunications, where efficient focusing and transmission of infrared laser beams are critical for achieving desired outcomes.

4. Optical Communications: Used in infrared optical communication systems for transmitting data over long distances with minimal signal loss, ensuring high-speed and reliable communication in telecommunications networks and data centers.



For inquiries or custom orders, please feel free to contact us. Our dedicated team is committed to providing tailored solutions to meet your specific requirements for optical fused quartz glass lenses for infrared applications and other optical systems.

Step 1: PE film coating(Normally) / paper(For sea shipment prevent wet).

Step 2: Kraft paper for fixation.

Step 3: Carton for glass safety protection.

Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.

Step 5: Packing strap for further fixation.

Port: Shenzhen or Hongkong
